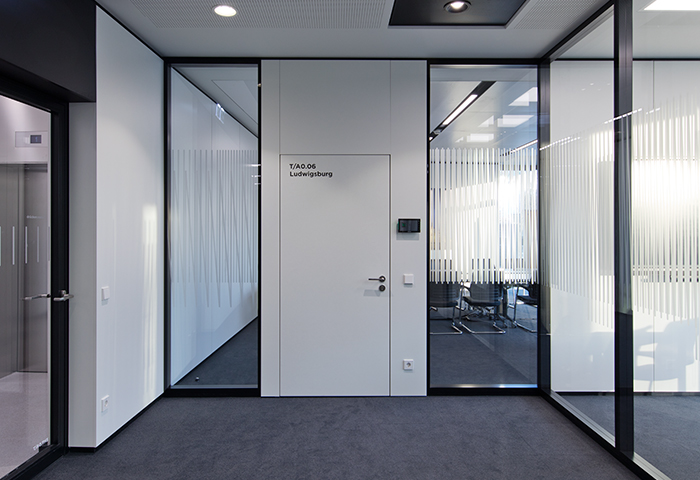

Solid door VT 41

Single-leaf or double-leaf solid door element

Door panel: Multi-layer construction (solid core or sound insulation construction)
Door thickness: 41 mm
Door frame: Anodised aluminium E6/EV1, portal doors with concealed frame as well as invisible frames, closed wooden frames
Surface: Veneered wood-based panels, painted or coated
Door fittings: From Strähle collection
Sound insulation: Up to 37 dB Rwp
Fire protection: T0
Connections:
- Fitting in Strähle partition wall systems
- Fitting in concrete and masonry walls
- Fitting in drywalls
Optional functions:
- Sound insulation up to 37 dB Rwp (SSK II)
- Access control
- Emergency exit function
- Emergency exit locking
- Lock monitoring
Compatible with Systems: 2000, 2300, 3400, T, MTS

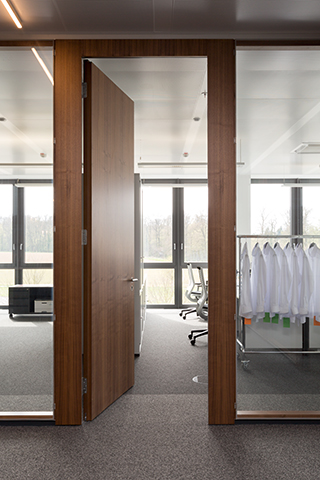

  • Solid door
  • Solid door
  • Solid door

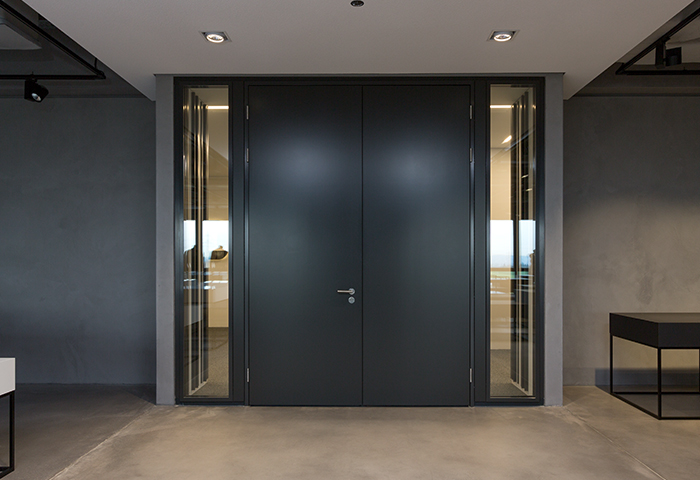

  • Solid door 2 leaved version

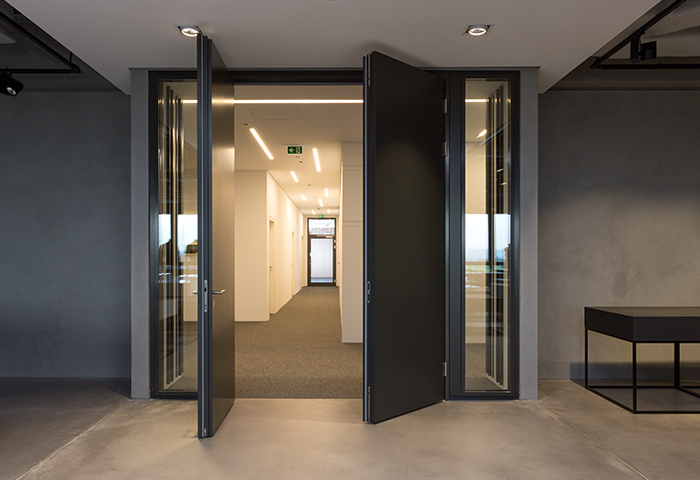

  • Solid door - 2 leaved version

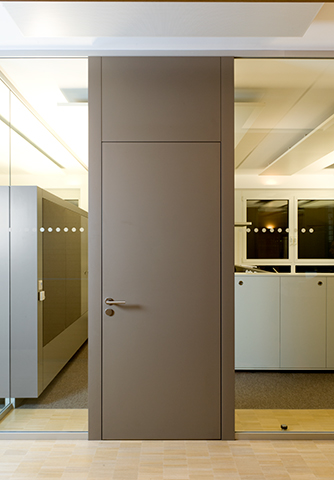

Solid door VT 64

Single-leaf or double-leaf solid door element

Door panel: Wood-based panels, multi-layer construction
Door thickness: 64 mm
Door frame: Anodised aluminium E6/EV1, portal doors with concealed frame as well as invisible frames, closed wooden frames
Surface: Veneered wood-based panels, painted or coated
Door fittings: From Strähle collection
Sound insulation: Up to 42 dB Rwp
Fire protection: T0
Connections:
- Fitting in Strähle partition wall systems
- Fitting in concrete and masonry walls
- Fitting in drywalls
Optional functions:
- Sound insulation up to 42 dB Rwp (SSK III)
- Access control
- Emergency exit function
Compatible with Systems: 2000, 2300, 3400, T, MTS


  • Solid door
  • Solid door
  • Solid door

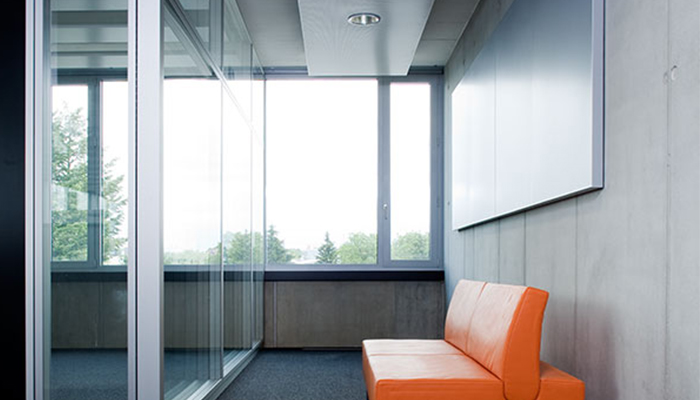

  • Solid door - Olymp, Bietigheim
  • Solid door - Olymp, Bietigheim
  • Solid door - Olymp, Bietigheim
  • System 2300

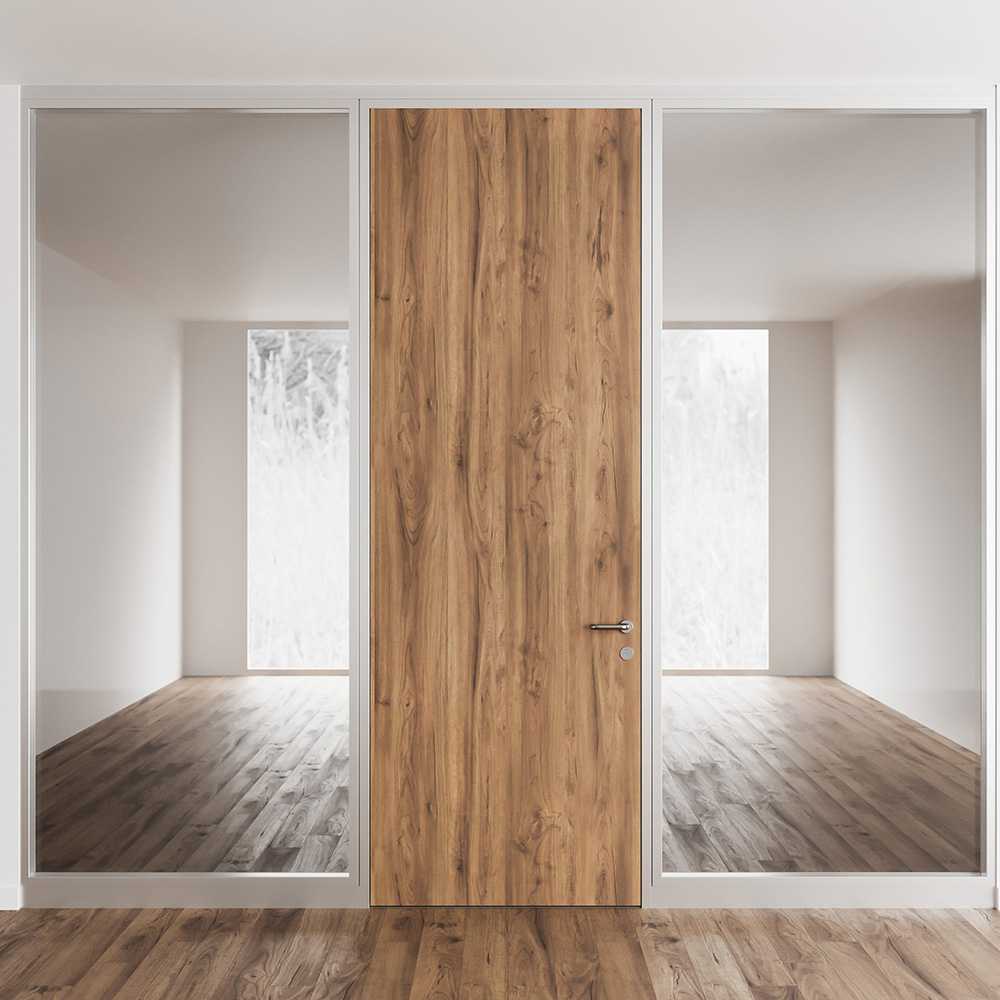

  • Solid door VT64

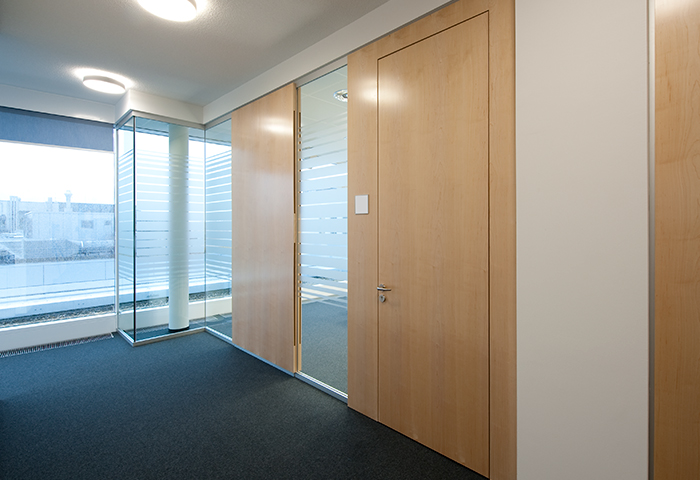

  • Solid door VT64
  • Solid door VT64

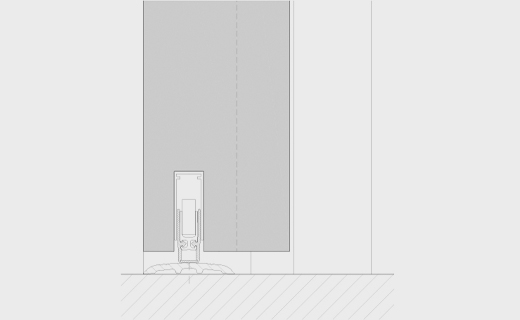

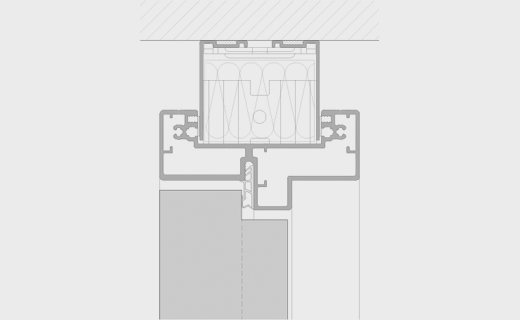

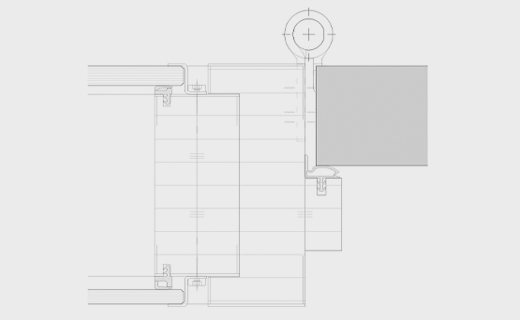

Technical details

The solid door can be created in countless variations. Here you will find some solutions and standard details. Your Strähle planning consultant will be pleased to provide you with information on individual solutions suited to your project. Obtain an obligation-free quote in your area.

Downloads

Technical documentation and planning examples can be found here.
