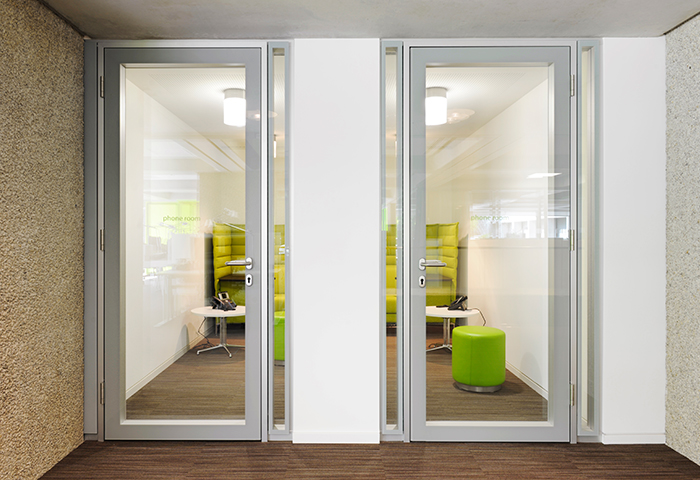

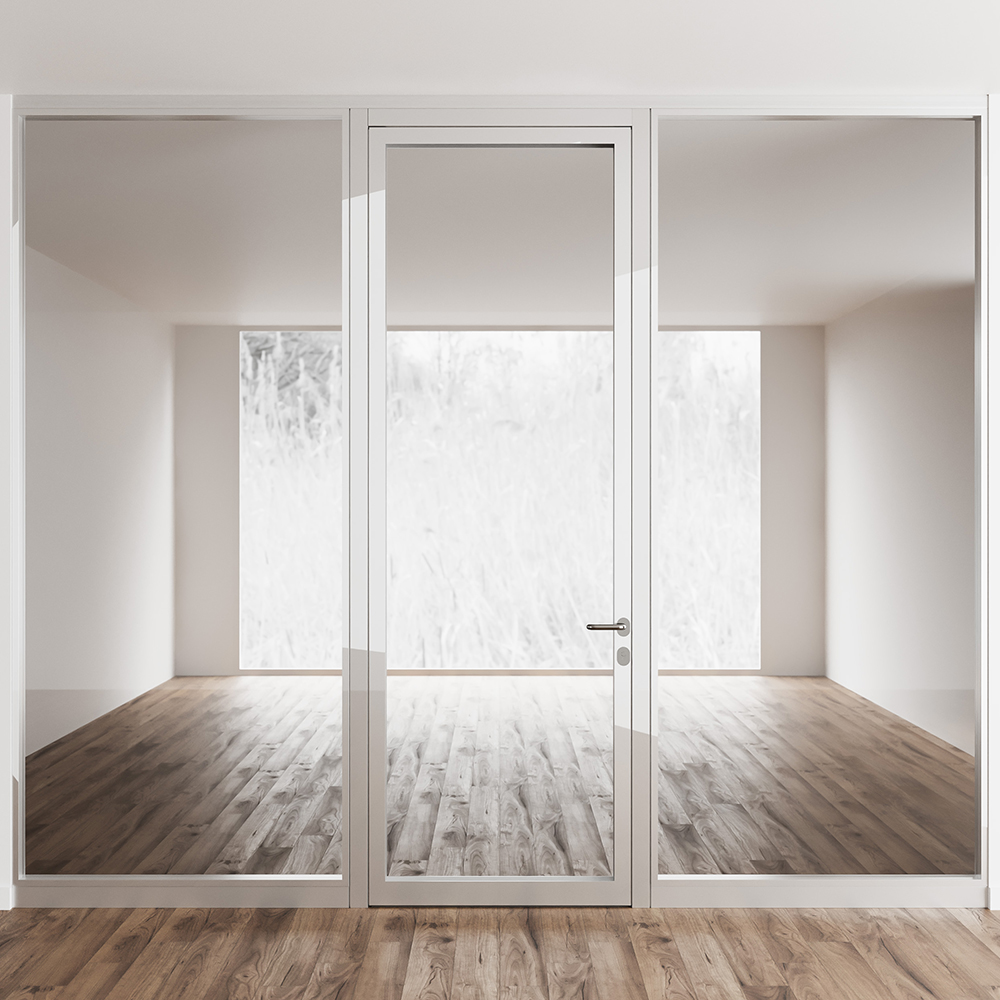

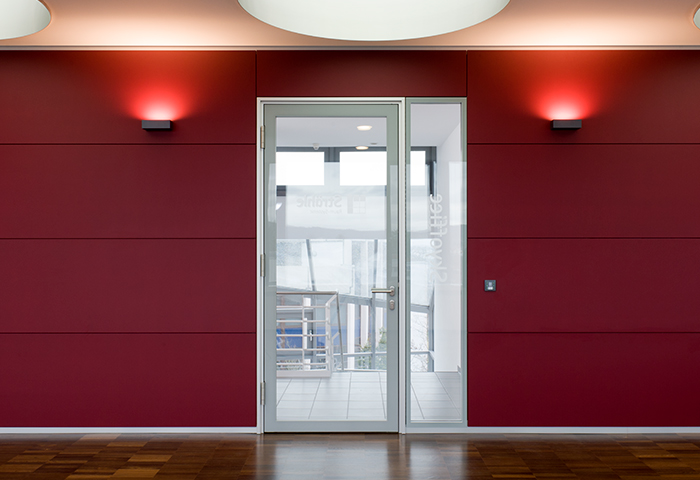

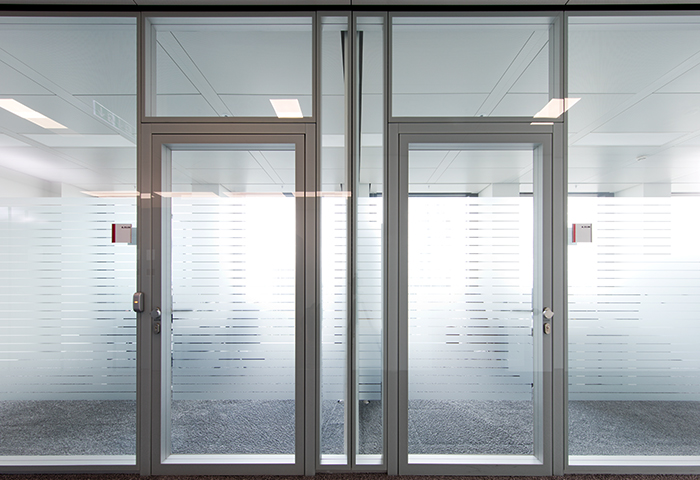

Flush-bonded glazing door SG 100

Flush-fit door element on both corridor and office side using Structural Glazing

Door panel: Fully glazed door with internal aluminium frame, flush on corridor and room sides
Door thickness: 100 mm
Door frame: Anodised aluminium E6/EV1 to bear the glass panes, glass bonded on (visible), colour similar to RAL 9006
Surface: Continuous glass front with flush-bonded glazing, bonded in light grey (black and white upon request)

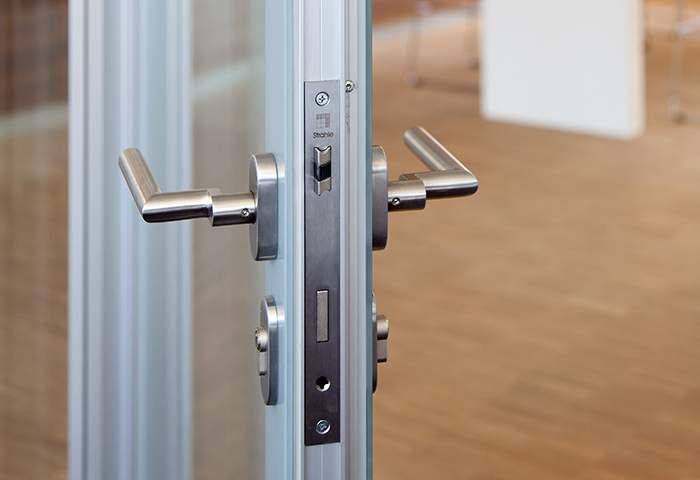

Door fittings: From Strähle collection
Sound insulation: Up to 42 dB Rwp
Fire protection:
Connections:
- Fitting in Strähle partition wall systems
- Fitting in concrete and masonry walls
- Fitting in drywalls
Optional functions:
- Sound insulation up to 42 dB Rwp (SSK III)
- Access control
- Emergency exit function
Compatible with Systems: 2000, 2300

  • Flush-bonded glazing
  • Flush-bonded glazing 64 mm
  • Flush-bonded glazing SG 100
  • Flush-bonded door
  • Structural-glazing-door ST100

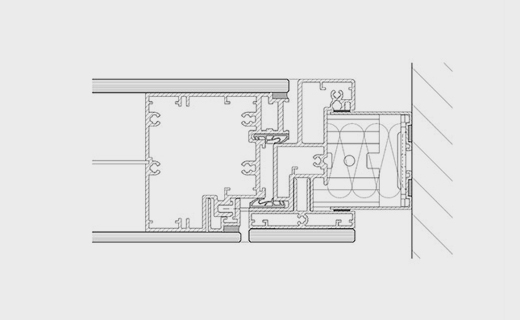

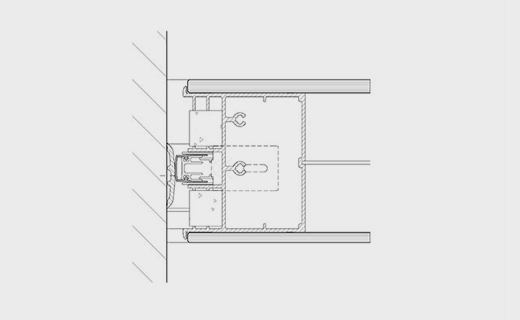

Technical details

The Structural glazing door can be created in countless variations. Here you will find some solutions and standard details. Your Strähle planning consultant will be pleased to provide you with information on individual solutions suited to your project. Obtain an obligation-free quote in your area.

Downloads

Technical documentation and planning examples can be found here.
