Room-in-Room-Systems

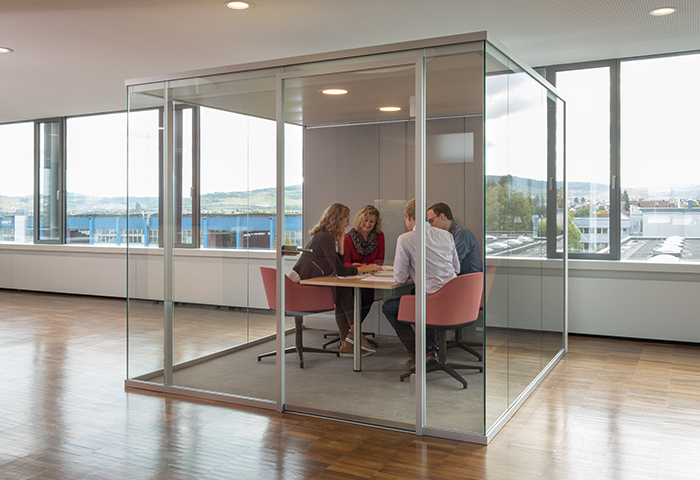

Kubus I Team

Project

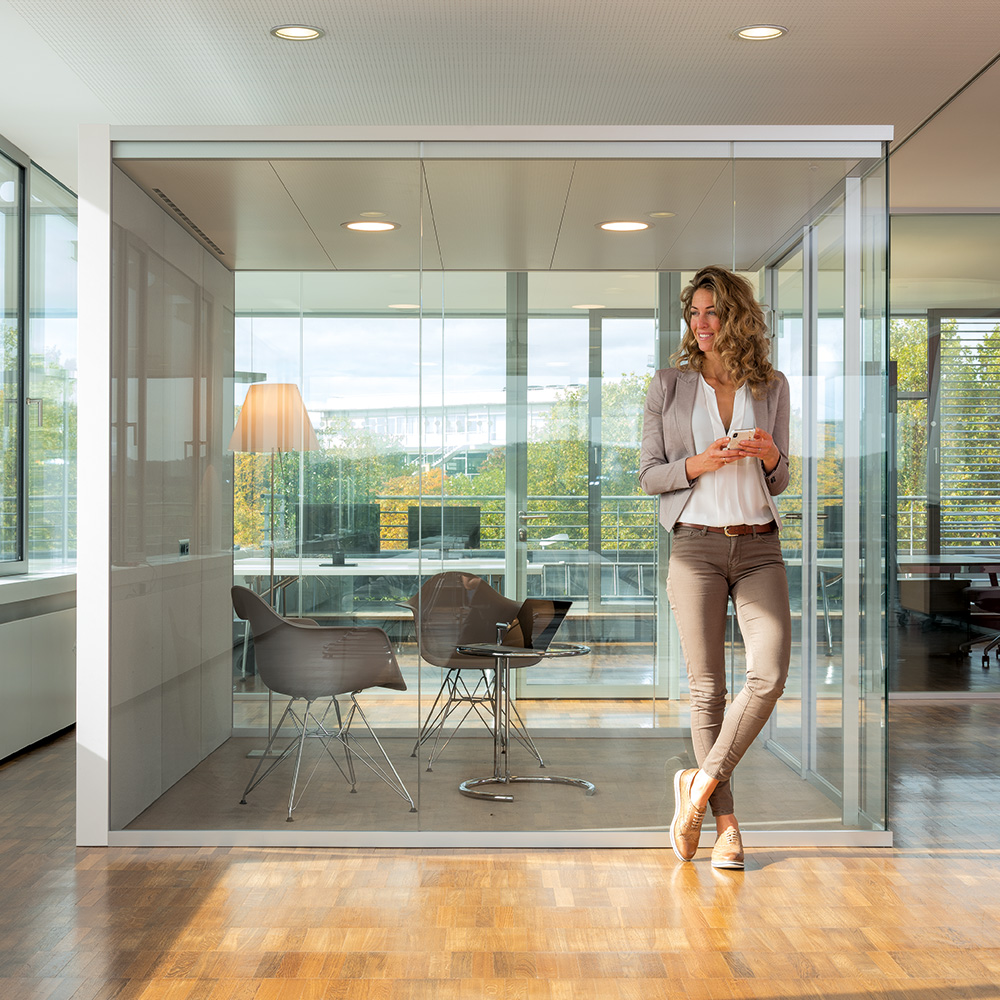

Showroom Waiblingen

Project

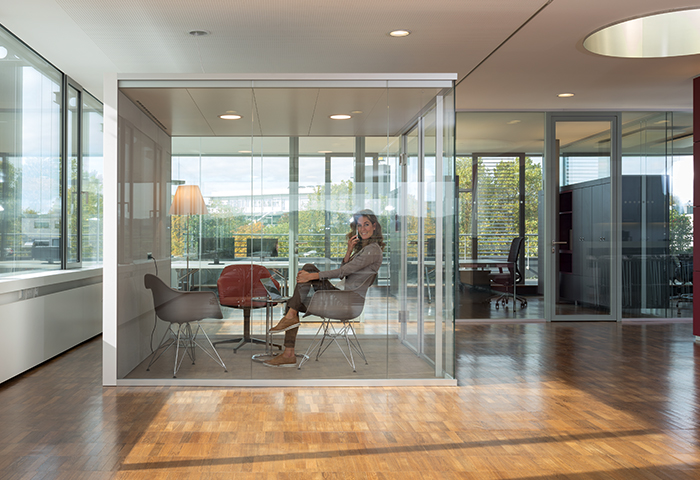

Showroom Waiblingen

Project

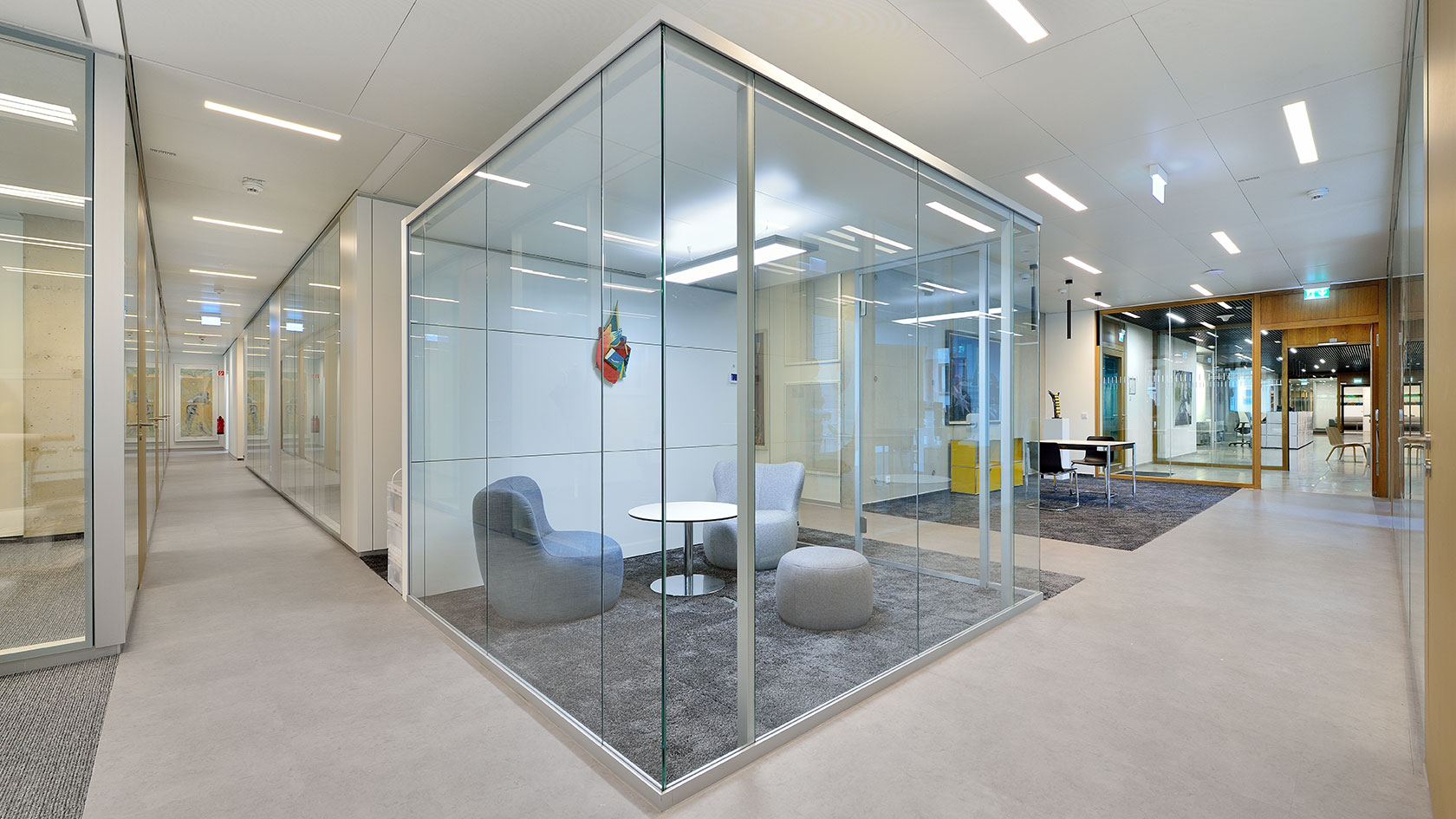

Fürst & Friedrich, Düsseldorf

Video anhalten

Kubus I Team

Picture gallery

Technische Details

4

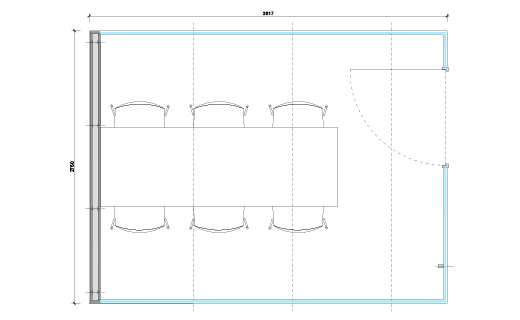

L: 2.615 mm (2 Achsen)/ W: 2.750 mm/ H: 2.300 mm
Single glazing, 10 mm ESG/12 VSG / 16 mm VSG
All-glass door 10 mm toughened glass or 40 mm aluminium frame door with 12 mm SI laminated glass glazing
10 mm ESG: Dn,T,w = 28 dB (equivalent to R’w of approx. 34 dB) / 12 mm VSG: Dn,T,w = 30 dB (equivalent to R’w of approx. 37 dB) / 16 mm VSG: Dn,T,w = 32 dB (equivalent to R’w of approx. 39 dB)
Micro-perforated ceiling panels and micro-perforated wall absorbers, low reverberation times of < 0.5 s over the entire frequency range
Ventilation and air extraction device integrated into the system ceiling, output in comfort mode up to 210 m³/h, intensive ventilation up to 210 m³/h
LED pendant light with direct and indirect light distribution
Built-in power strip with inserts (2 x 230V, 1 x USB-A/C charger, 1 x LAN)
Lighting + ventilation. On/off control via presence detector.
Wall panel for affixing screens, Cooling via cooling ceiling or cooling convector in sideboard, each with on-site cold water supply

Case studies

Hamburg

HF Group

Darmstadt

Akasol AG

Düsseldorf

Fürst & Friedrich

Waiblingen

Showroom

Vienna

T-Center
