TB.2

The room-in-room solution for meetings or as a compact retreat for quiet work. The TEAMBOX does not need to be connected to the wall, ceiling or floor.

Solid wall: 100 mm monobloc
Glass wall: 12 mm laminated safety glass, flush single structural glazing
Floor: 100 mm monobloc
Ceiling: acoustically efficient ceiling system

Structural sound insulation R´w 37 dB, speech level difference: D_S,A = 30 dB (Class A)

Bund Deutscher Architekten, Berlin

Acoustic workshop, Waiblingen

Acoustic workshop, Waiblingen

Showroom Borkheide

Bund Deutscher Architekten, Berlin

FACTS

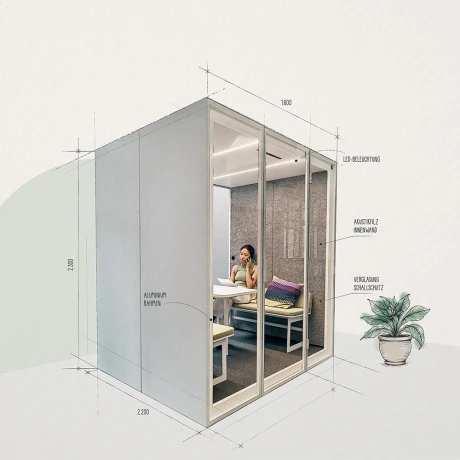

L 2.200 x W 1.600 x H 2.300 mm
Inside height: 2.100 mm

ACOUSTICS

Sound insulation: R’w 37 dB, speech level difference: DS,A = 30 dB (Klasse A)
Reverbaration time: < 0,5 seconds

VENTILATION

Soundproofed, electric vent in the ceiling
Air fed in via a flow duct in the floor
Air quantity infinitely adjustable up to 150 m³/h via a touch display

SURFACE

White, RAL 9016 matt
Black, RAL 9005 matt
Inside wall surface: grey-flecked acoustic felt
writable glass for the outer surfaces

What TEAMBOX offers you

READY-TO-USE: The Phone Box comes in just 15 parts and can be assembled in no time.

ACOUSTICS: High sound insulation and acoustically effective metal cassette panels for low reverberation times ensure undisturbed working on both sides of the telephone booth.

WELL VENTILATED: The ventilation system and the system floor with integrated overflow elements guarantee a consistently pleasant indoor climate.

EFFICIENT: Optimal use of space for greater confidentiality and concentration.

SUSTAINABLE: The TB.2 is made from recyclable materials and offers a high degree of flexibility in use.

DESIGN: The flush glass appearance achieved using the structural glazing method creates a high-quality design that allows daylight to enter from both sides.

Focus space for your team!

The phone box for phone calls or as a temporary individual workstation for concentrated work. Its dimensions ensure particularly efficient use of space in open-plan offices. With the TEAMBOX, you can create a working atmosphere that benefits everyone. While one employee conducts their calls undisturbed in the phone box, their colleagues outside can continue to work productively without distraction. Look forward to greater satisfaction in the office!

Thanks to its flush glazing, it creates a transparent, soundproof space that can also be made private with a curtain if desired. The continuously adjustable ventilation and lighting allow you to create an individual feel-good atmosphere depending on how it is used.

Technical Details

FACTS

L 2.200 x W 1.600 x H 2.300 mm, Lichte Höhe innen: 2.100 mm

ACOUSTICS

Bauschalldämm-Maß: R´w 37 dB, Reverberation time: < 0,5 seconds, Sprachpegeldifferenz: DS,A = 30 dB (Class A)

VENTILATION

Schallgedämmtes, elektrisches Entlüftungsgerät in der Decke, Luftmenge stufenlos per Touch Bedienfeld einstellbar bis 100m3/h

SURFACE

White, RAL 9016 matt, Black, RAL 9005 matt, Wandfläche innen: Akustikfilz grau meliert, Wandfläche außen: beschreibbares Glas

OPTIONAL FUNKTIONEN

Height-adjustabe desk, Curtain

Spaces that provide the perfect atmosphere for your tasks.

The TEAMBOXEN do not need to be connected to components such as facades, walls or ceilings. They can be configured flexibly, are highly soundproofed and extremely functional.

2 LED linear lights, flush-mounted in the ceiling, continuously dimmable,
light colour warm white 3,000 K
2 individual sockets in the wall, optional power strip with USB-C integrated into the table
