Kubus II Team

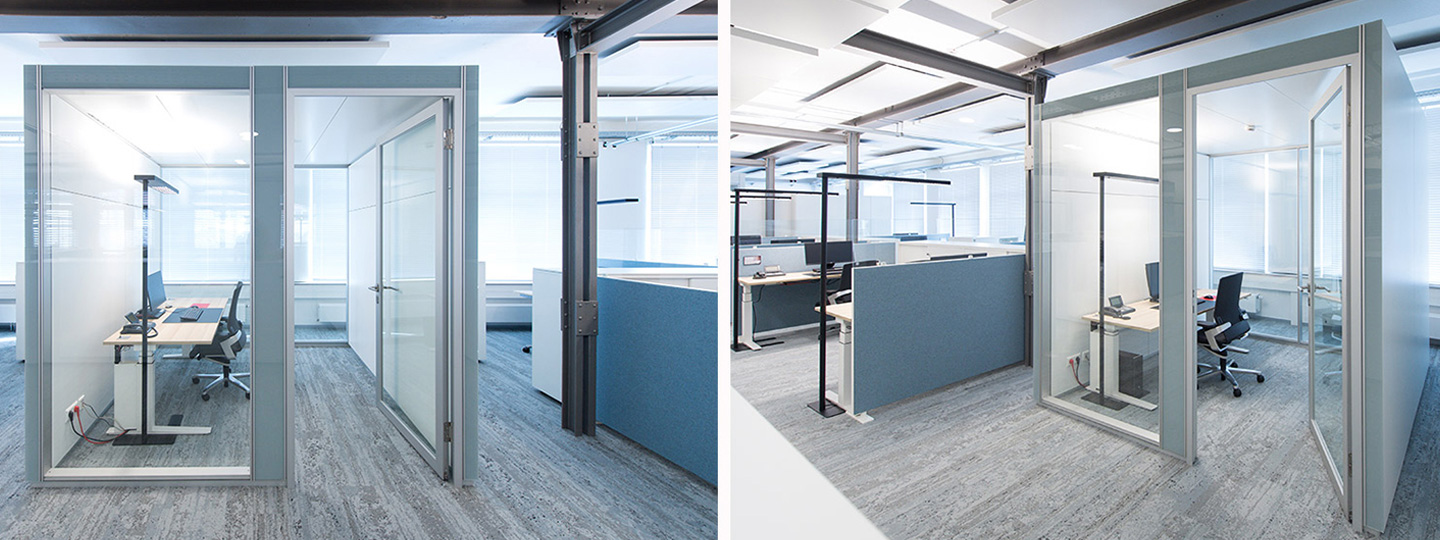

Retreat, conference room, think tank: Strähle room-in-room systems create new rooms in open spaces. The high-quality and stylish optics of the System T with its wood mullion/transom construction is achieved using the contrast between the wooden surfaces and the glazing. The flush-fit glazing and the narrow visible width of the aluminium mullion substructure contribute to the elegant design. The comfort features of the Kubus II system, starting from soundproofing and room acoustics to ventilation and cooling, are the same as those of the Kubus II.


  • Kubus II Team
  • Kubus II Team
  • Kubus II Team
  • Kubus II Team
  • Kubus II - T
  • Kubus II - T
  • Kubus II Team
  • Kubus II Team

Design: Modular cube with double glazing in aluminium glass look
Dimensions: L: 2,684 / 3,934 / 5,184 mm; W: 2,750 mm; H: 2,530 mm
Wall thickness: 100 mm
Glazing: 6 and 8 mm toughened glass
Door: 40 mm aluminium framed door
Sound insulation: Norm sound level difference Dn,T,w = 36 dB (equivalent to R’ w = 42 dB)
Room acoustics: Micro-perforated absorber integrated in solid wall and ceiling
Control: Touch display to control lighting and ventilation (optional cooling)
Ventilation: Steplessly adjustable comfortable operation up to 210 m3/h, integrated in system ceiling
Cooling (optional): Comfort cooling device in sideboard for connection to the building's system or independent operation via electrical cold-water exchanger on Kubus ceiling

Case studies

This is how our finished solutions look. Inspiration and examples for innovative office designs, implemented with room-in-room-system Kubus II.
